Semi low-loader
Used
NOOTEBOOM OSDS-48-03V(EBW) Semi low-loader
- Vehicle Nr.
- V004419
- Model
- OSDS-48-03V(EBW)
- Axles
- 3
- Suspension
- Air
- Steering system
- Self-tracking
OSDS-MEGA extendible Megatrailer
Are you looking for a versatile extendable MEGATRAILER for heavy transport, special transport and long loads? The Nooteboom OSDS-MEGA combines a completely flat loadingbed with high payload capacity and an extremely low loadingbed height. This makes the mega trailer ideal not only for crane-loaded cargo, but also for the transport of heavy self-propelled machinery.
Megatrailer
- Nr of Axles 3
- Steering self tracking
- Suspension Air
- Axle distance 1360 mm
- Thin Gooseneck 115 mm
Extremely low loadingbed height
The OSDS-MEGA features a fully flat, extendable loadingbed with a loaded height of only approximately 970 mm. Thanks to the ultra-thin gooseneck of just 115 mm, you benefit from maximum loading height within legal transport dimensions. The trailer is suitable for both 4×2 and 6×2 mega tractors and fully complies with international transport requirements.
Designed for maximum efficiency
With its self-tracking rear axle and optimised wheelbase, the OSDS-MEGA offers excellent manoeuvrability and stable driving behaviour. This allows you to transport long, heavy and voluminous loads safely and efficiently, even on challenging routes.

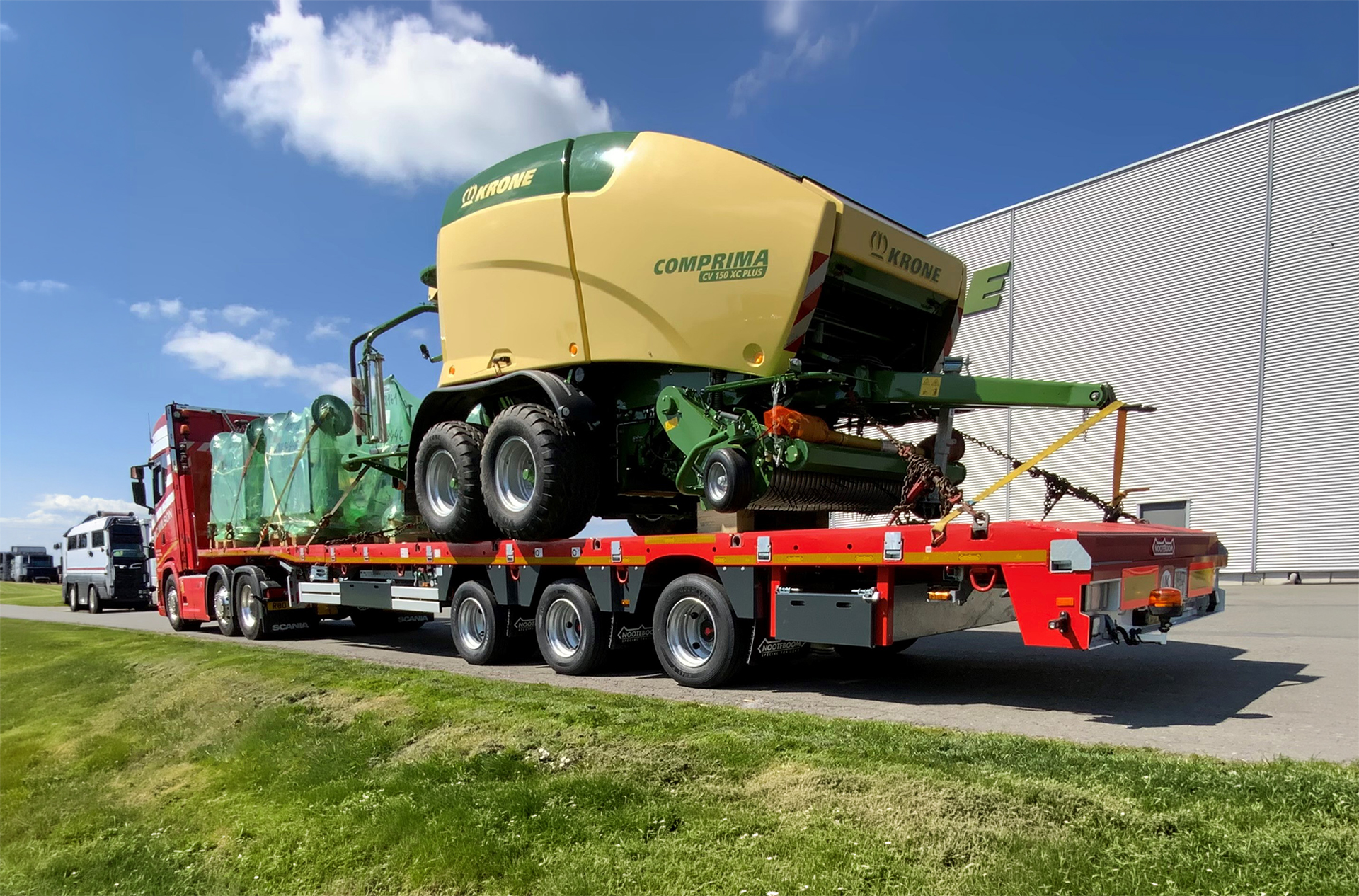

OSDS-MEGA extendible megatrailer
High-quality construction and long service life
The unique central box-section beam provides a strong and torsion-resistant chassis with a low tare weight. The chassis is fully metal-sprayed for optimal corrosion protection. Combined with high-quality premium-brand components, this results in low maintenance costs, a long service life and a high residual value.
A value-retaining investment
The OSD-MEGA has been developed for transport companies seeking maximum reliability and a high return on investment. Thanks to its durable construction, low operating costs and excellent residual value, you benefit from an attractive total cost of ownership and a high return on investment.
Fully tailored to your transport needs
The Nooteboom OSDS-MEGA is available with:
- 3 axles, with the rearmost axle self-tracking
- Ultra-thin gooseneck of only 115 mm
- Suitable for 4×2 and 6×2 mega tractors
- Single extendable flat loadingbed without a step or gooseneck
- Air suspension with lift/lower function
- Technical axle load of 10 tonnes per axle at 80 km/h
- SAF axles
- Tyre sizes 235/75R17.5 or 245/70R17.5
- Axle spacing of 1360 mm
- Loaded loadingbed height of approximately 975 mm
- Extendable loadingbed widening system
- Hook-on aluminium ramps
- Various headboards, toolboxes and storage solutions
The smart choice for heavy and special transport
Would you like to transport heavy machinery, steel structures, precast elements or other long loads efficiently? With the Nooteboom OSDS-MEGA, you benefit from a high-quality extendable MEGATRAILER that combines maximum flexibility, reliability and payload capacity for every transport challenge.
