Euro-PX3 Low-loader

Are you looking for a low-loader for heavy and exceptional transport with maximum payload capacity and flexibility? The Nooteboom EURO-PX low-loader has been setting the standard in the market since 2005.

Low-loader

Stroke 600 mm
Axles Pendulum
Payload per axle line 12-14 t
nr of axles 2-6
Axle distance 1360 / 1510 mm

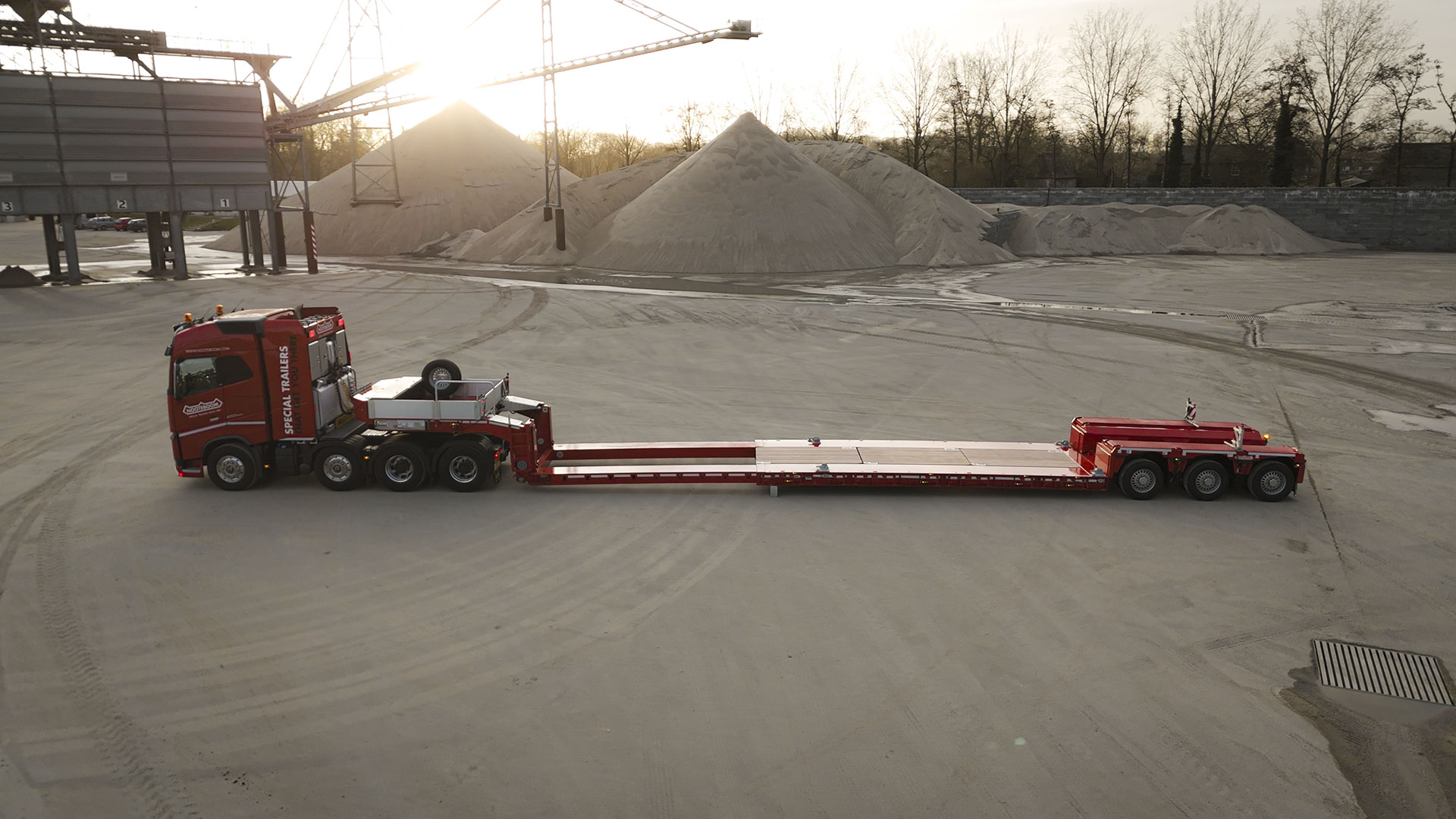

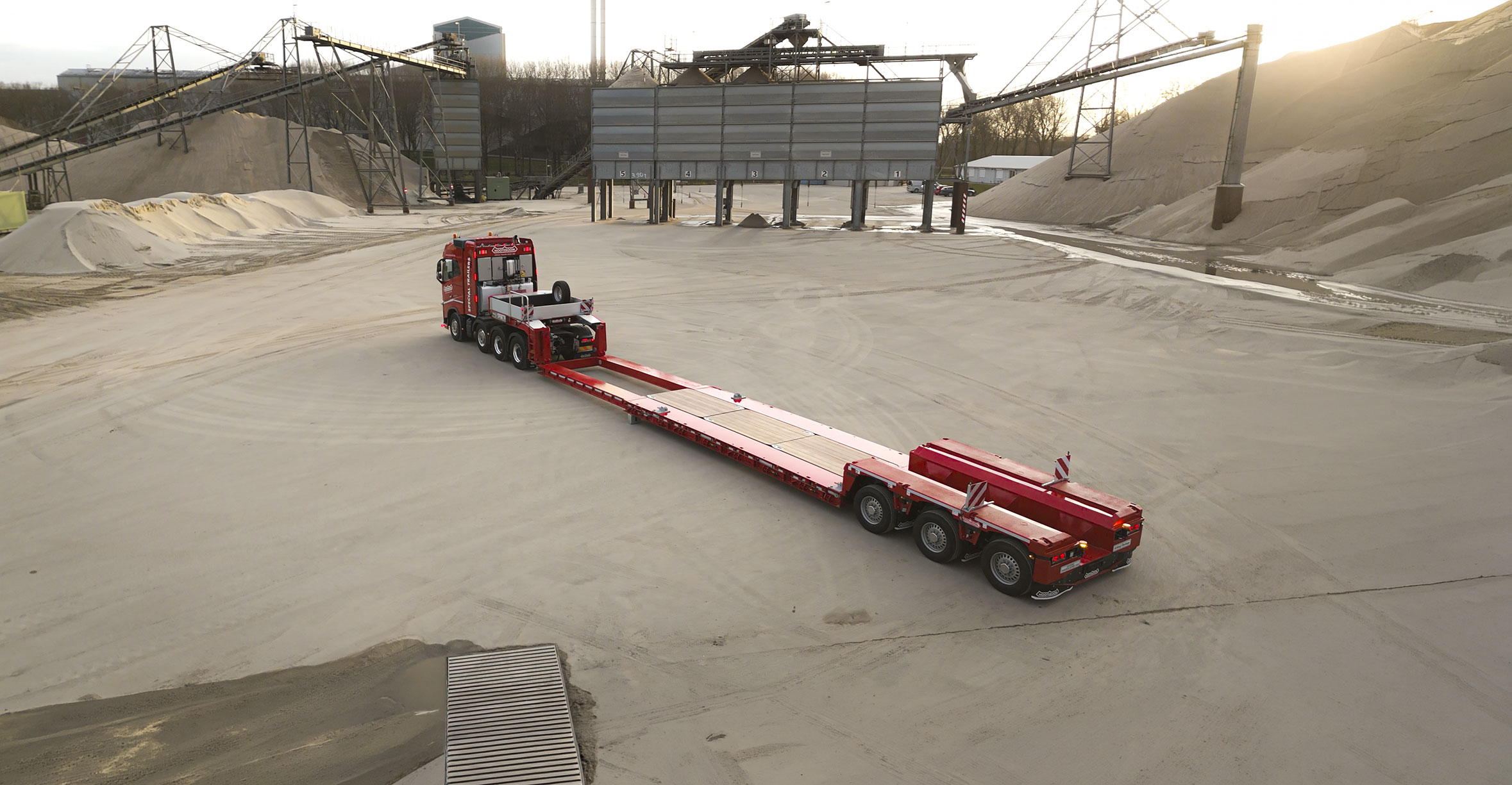

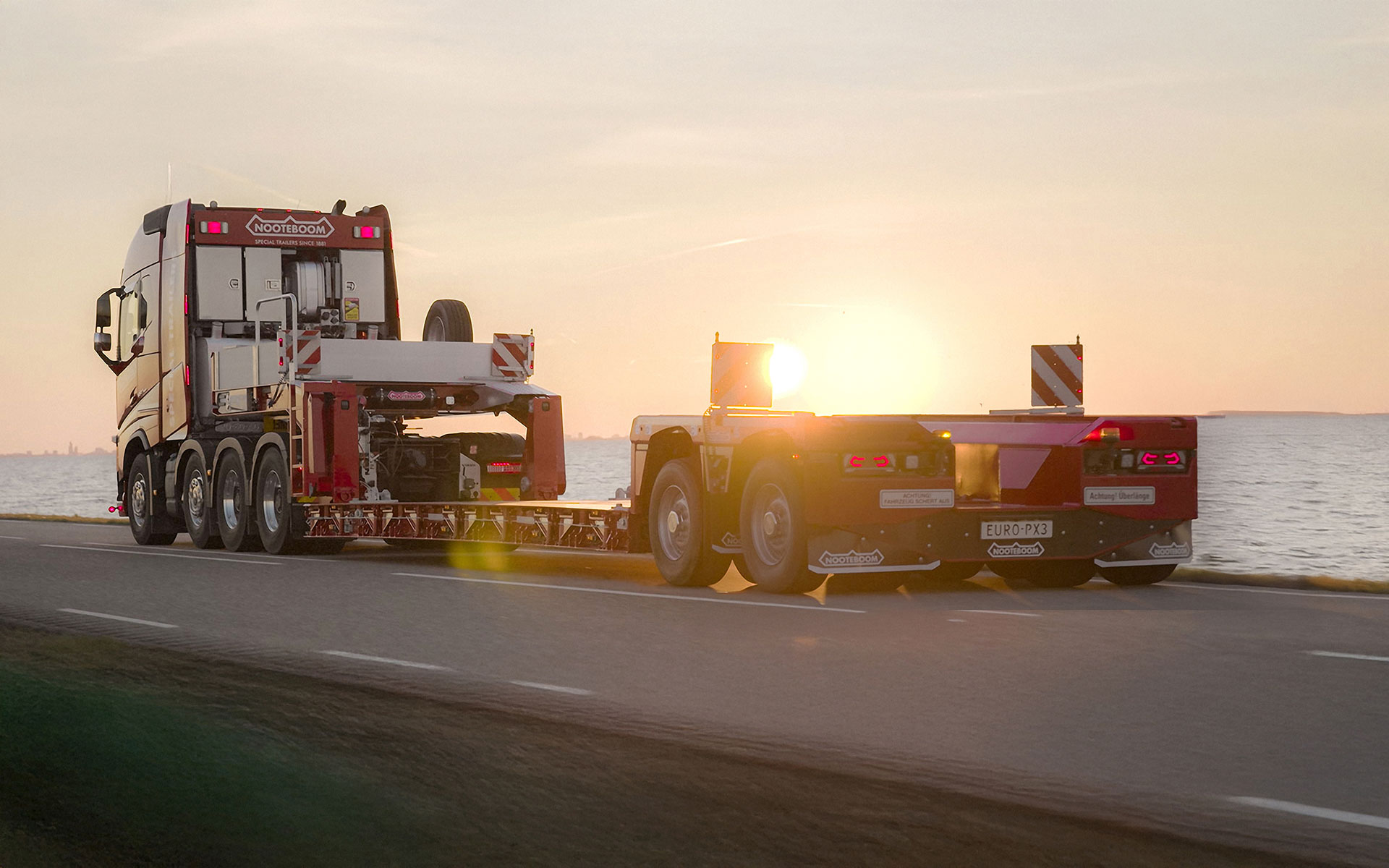

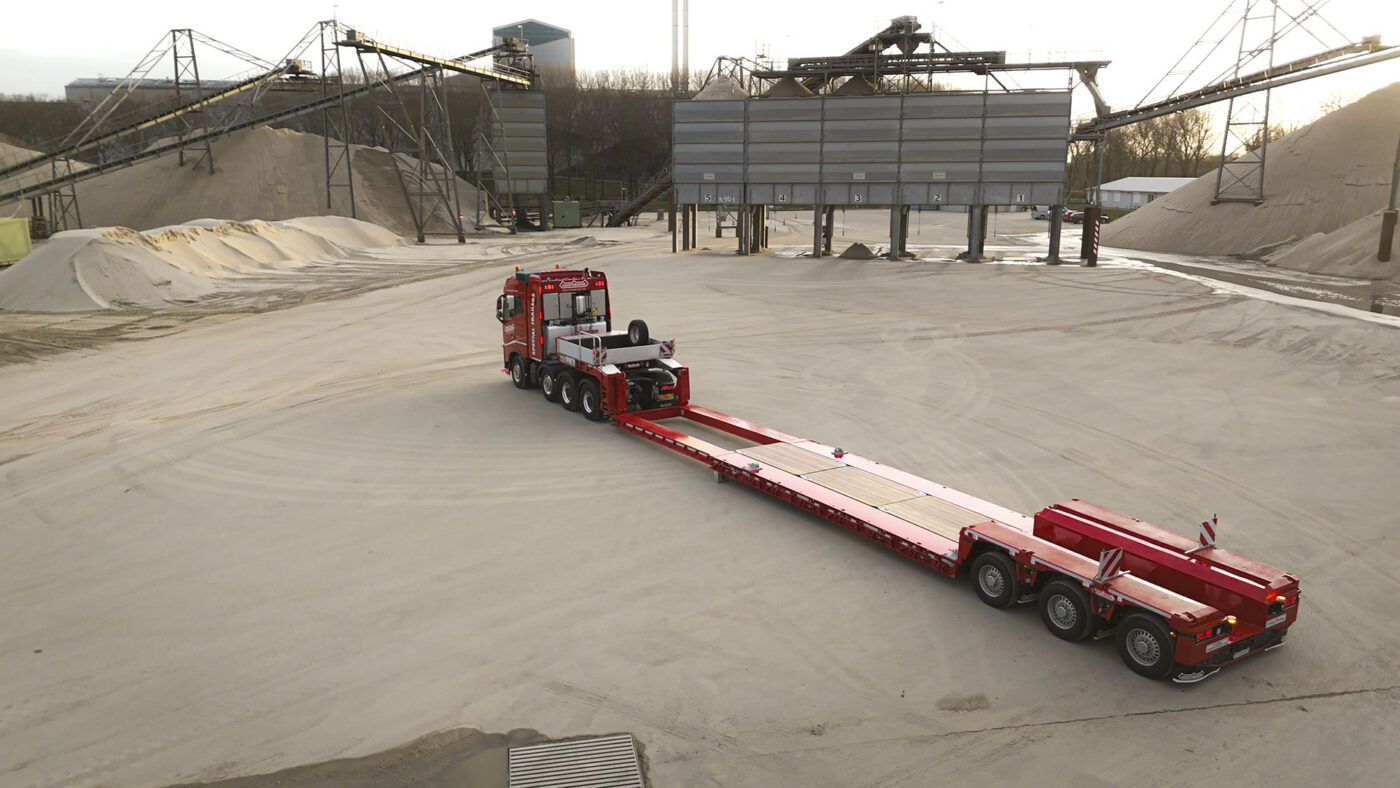

Euro-PX3 low-loader

Developed for maximum efficiency

The EURO-PX is equipped with pendulum axle lines and a compact axle bogie, allowing you to create more loading length or assemble a shorter vehicle combination. The hydropneumatic suspension with a suspension travel of no less than 600 mm makes loading, unloading and overcoming obstacles easier and more efficient.

Thanks to the patented Pendel-X technology, this innovative low-loader combines the advantages of a conventional low-loader with the performance of a modular trailer. This gives you a high payload capacity, excellent manoeuvrability and a wide, deep excavator through for transporting large and heavy machinery.

Nooteboom EURO-PX3 introduction video

Advantages of the EURO-PX3 low-loader

High payload capacity thanks to high axle loads
Wide and deep excavator boom recess for larger excavators and machines with long booms
Compact axle bogie for maximum flexibility
Excellent off-road capability thanks to the large suspension travel
Exceptional manoeuvrability due to the large steering angle

Durably built for practical use

As standard, the EURO-PX3 features a wide and deep excavator boom recess, TÜV-certified lashing rings, stake pockets and manual steering. The fully hot zinc sprayed chassis provides excellent protection against corrosion and ensures a long service life. For additional payload capacity and optimal weight distribution, you can extend the low-loader with a Jeepdolly or Interdolly.

The ideal low-loader for heavy transport

Whether you transport heavy machinery, excavators or other exceptional loads, the Nooteboom EURO-PX provides a reliable transport solution that combines maximum payload capacity, flexibility and durability for every transport challenge.

Fully tailored to your transport needs

The EURO-PX3 low-loader is available in various configurations:

2 to 6 pendulum axle lines
Hydropneumatic suspension with raise/lower function
Technical axle loads up to 14 tonnes per axle line at 80 km/h
Various axle bogie configurations with different widths, tire sizes and axle spacing
Various tyre, axle spacing and axle bogie configurations
An extensive range of goosenecks

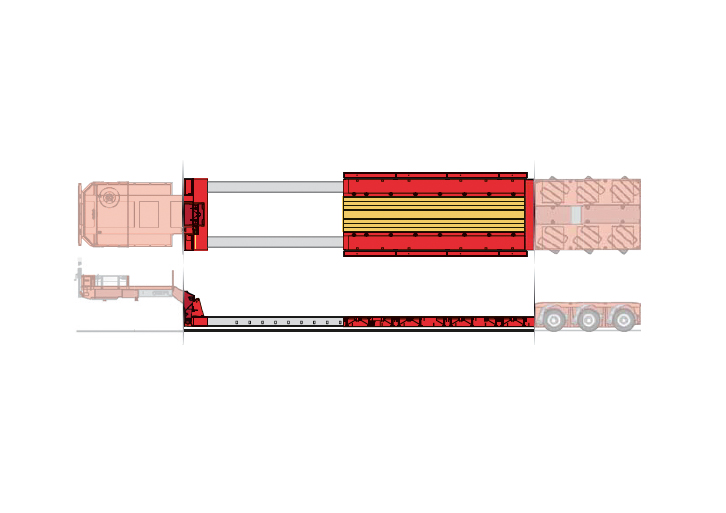

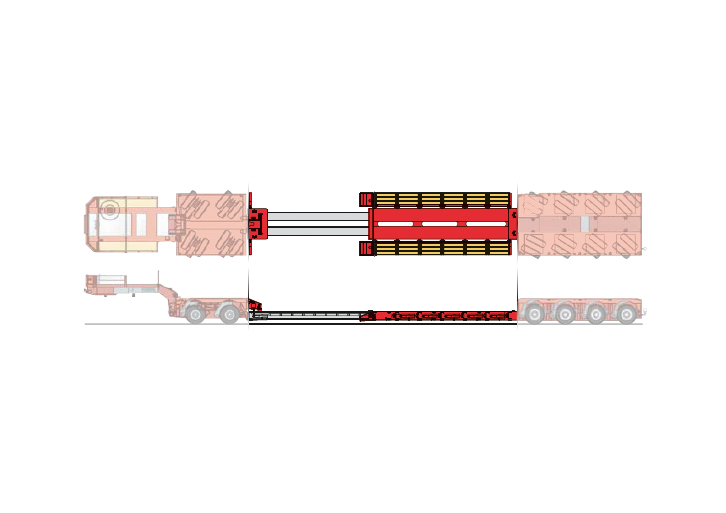

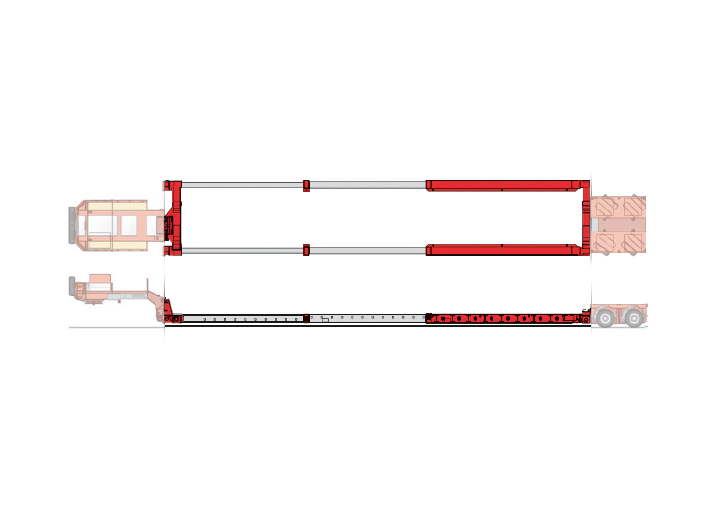

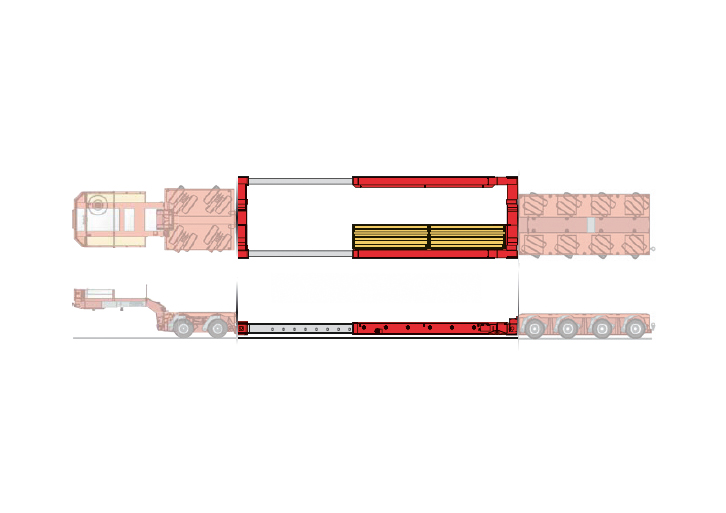

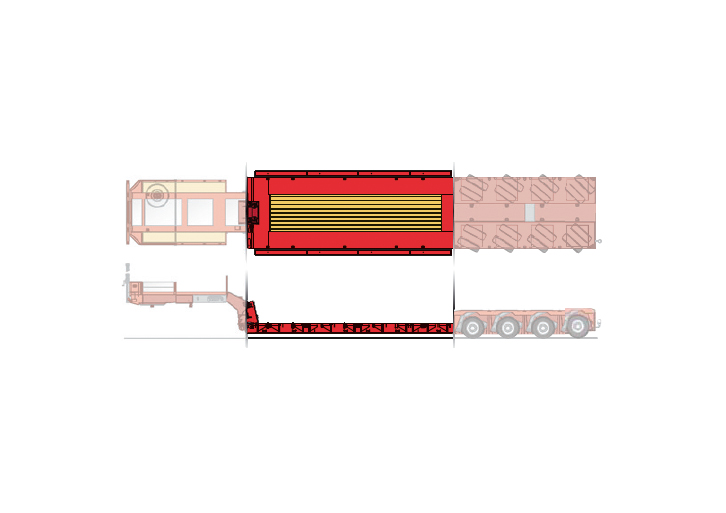

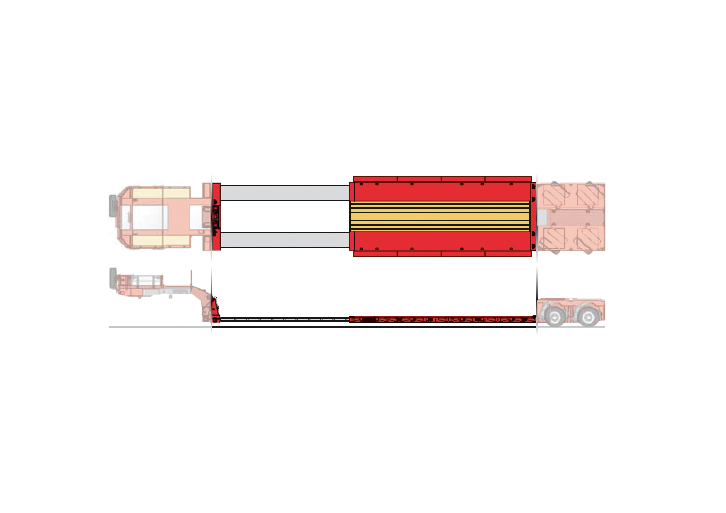

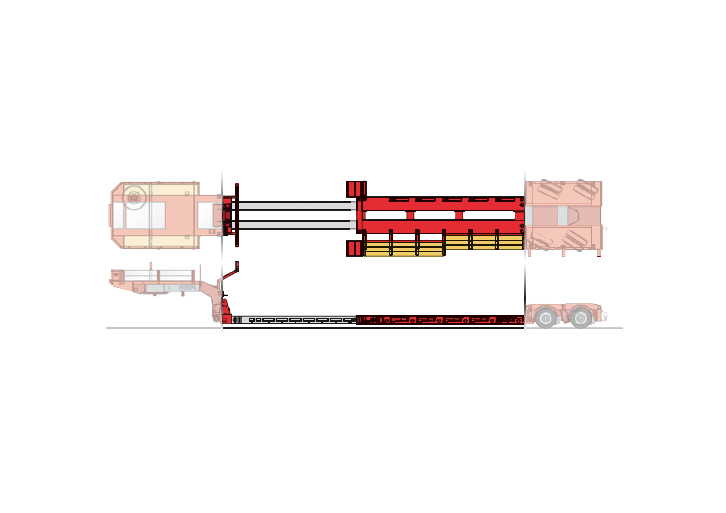

Custom loadingbeds for every transport application

Dimensions PX3

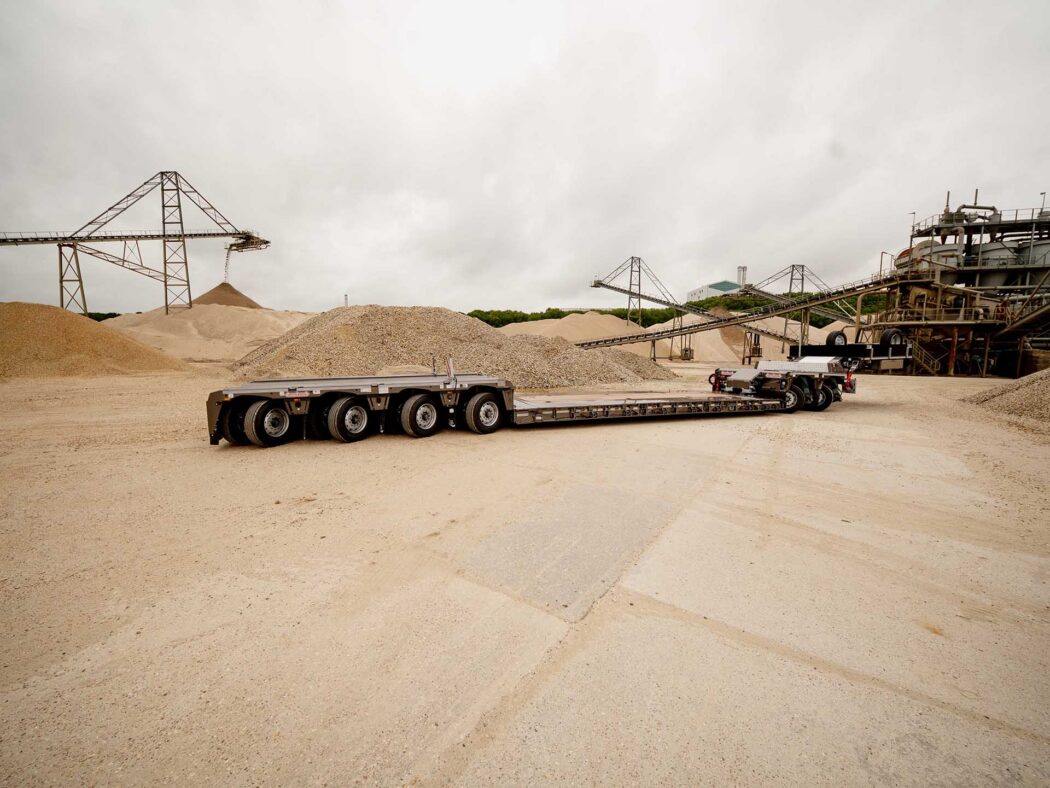

The new EURO-PX3 is currently available with 2, 3 or 4 axle lines at the rear and can be combined with an Interdolly with 1 or 2 axle lines at the front. To meet a variety of transport requirements, the EURO-PX3 rear bogie is offered in multiple configurations:

Tire size 245/70R17.5	2 axle lines	3 axle lines	4 axle lines	5 axle lines	6 axle lines
Load capacity at 80 km/h (t/axle line)	12,0	12,0	12,0	(Available in PX2)	(Available in PX2)
Driving height loaded (mm)	1030	1030	1030
Stroke of suspension (mm)	-140/460	-140/460	-140/460
Axle bogie width (mm)	2540/2740/2840	2540/2740/2840	2740/2840
Excavator trough width (mm)	740/940/1040	740/940/1040	740/940/1040
Excavator trough depth (mm)	480	480	480
Axle distance (mm)	1360/1510	1360/1510	1360/1510

Tire size 285/70R19.5	2 axle lines	3 axle lines	4 axle lines	5 axle lines	6 axle lines
Load capacity at 80 km/h (t/axle line)	12,0/13,9	12,0/13,9	12,0/13,9	(Available in PX2)	(Available in PX2)
Driving height loaded (mm)	1120	1120	1120
Stroke of suspension (mm)	-140/460	-140/460	-140/460
Axle bogie width (mm)	2540/2740/2840	2540/2740/2840	2740/2840/2990
Excavator trough width (mm)	500/700/800	500/700/800	700/800/950
Excavator trough depth (mm)	570	570	570
Axle distance (mm)	1360/1510	1360/1510	1360/1510

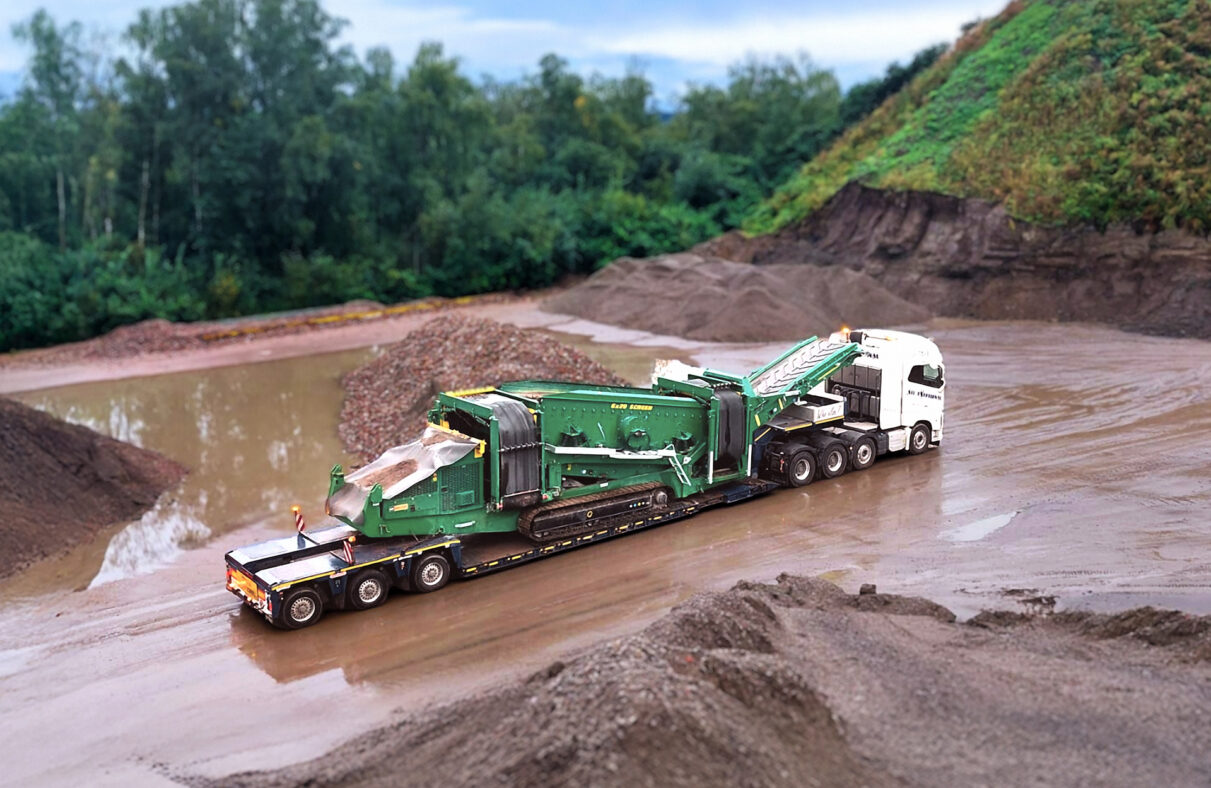

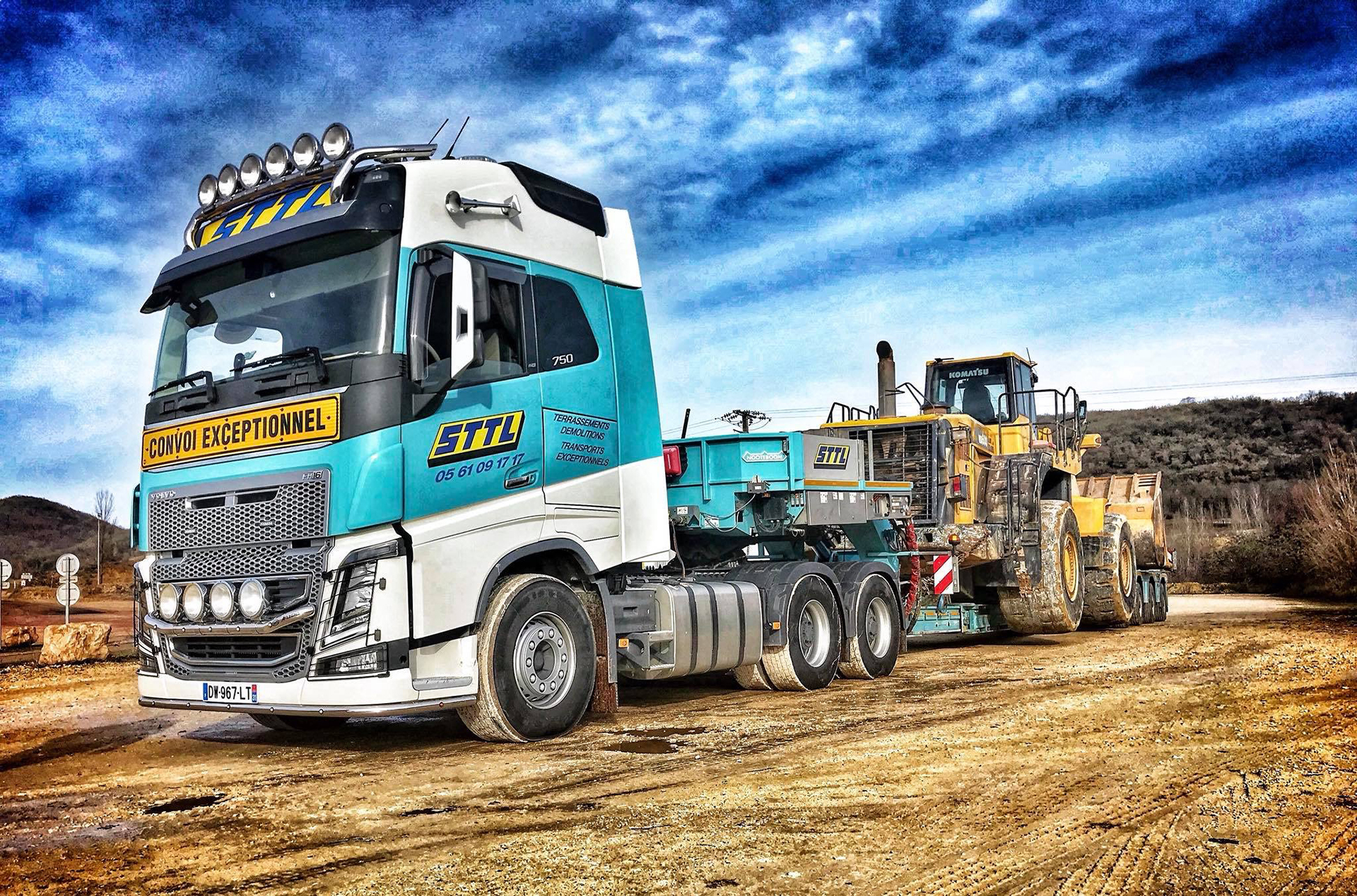

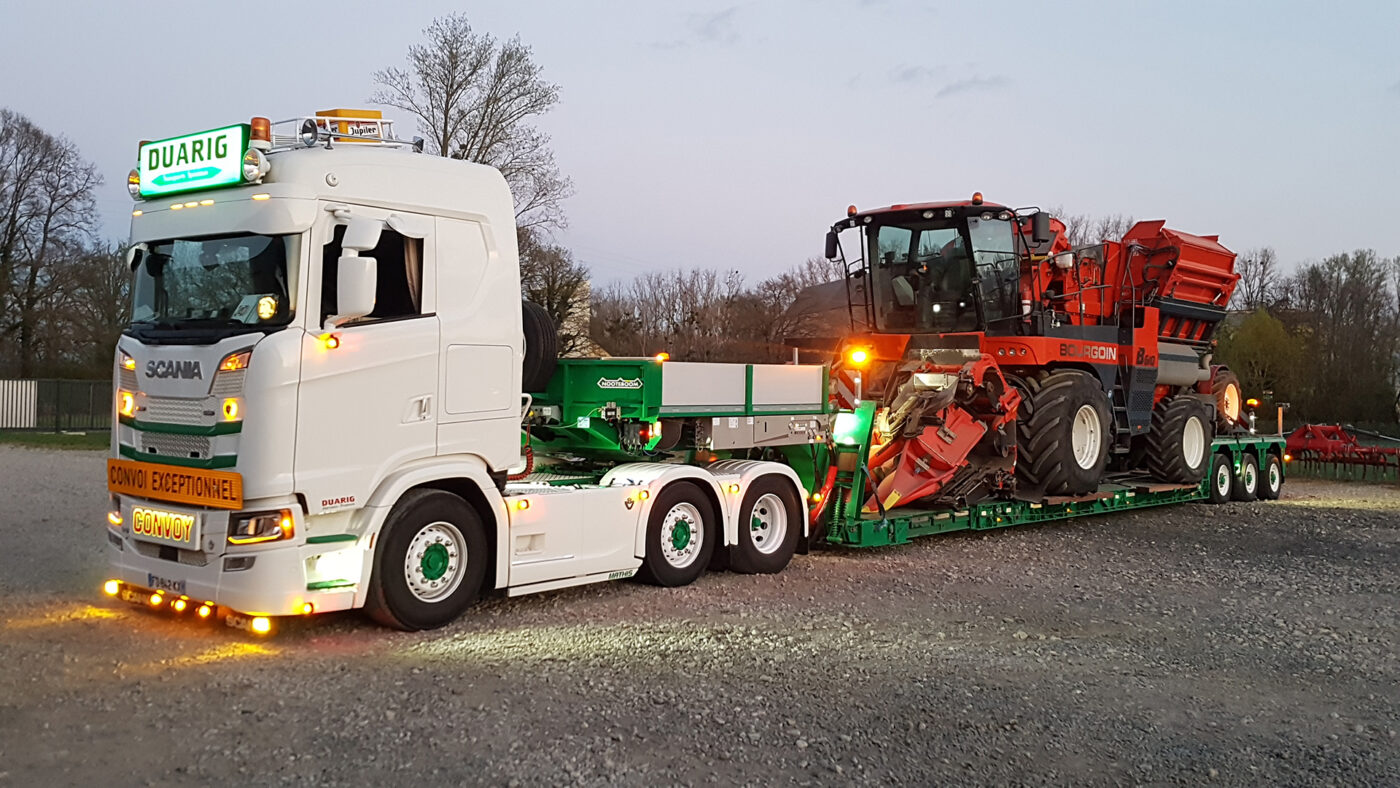

EURO-PX2 low-loader

In 2005 Nooteboom brought the revolutionary EURO-PX low-loader on the market. For the first time a wide and deep excavator trough was combined with pendle axles in the axle bogie. The EURO-PX low-loader with patented Pendel-X technology proves to be an important addition for low-loader transport. Not least because it combines an excavator trough and the easy operation of a conventional low-loader with the load capacity, steering and stroke of a modular trailer.

Second generation

From 2009 the design of the axle bogie of the EURO-PX low-loader has been optimised on important points:

Stroke has been increased to 600mm
Inside wheel can be easily and quickly changed
Air tanks are integrated in the central beam of the axle bogie, eleminates the risk of getting damaged
Long life of bearings and hoses
Standard hose rupture safety valve on every pendle axle.

Advantages

The advantages of the EURO-PX low-loader compared with a conventional low-loader includes:

Higher axle load in most European countries, resulting in an extremely high payload
Wider and deeper excavator trough for the transport of larger excavators
Very compact axle bogie, resulting in a shorter combination length or more load floor length
Increased suspension stroke, which makes loading/unloading and negotiating obstacles easier
Unprecedented manoeuvrability due to large steering angle

The EURO-PX2 low-loader is available with e.g.:

5 or 6 pendle axle lines at the rear
Hydropneumatic suspension with raise/lower function and 600mm stroke
Technical axle load of 12t/axle line or 14t/axle line at 80 km/h
SAF axles or BPW axles
Tyres 245/70R17.5 or 285/70R19.5
Axle distance 1360mm or 1510mm
Width axle bogie 2520mm, 2740mm, 2840mm, or 2990mm
Wide range of goosenecks to suit any type of tractor
Loading floors in a wide variety of versions and dimensions; can be custom-made to meet any specific requirements.

Dimensions PX2

Tire size 285/70R19.5	2 axle lines	3 axle lines	4 axle lines	5 axle lines	6 axle lines
Load capacity at 80 km/h (t/axle line)	(Available in PX3)	(Available in PX3)	(Available in PX3)	12,0	12,0
Driving height loaded (mm)				1100	1170
Stroke of suspension (mm)				-140/+460	-210/+390
Axle bogie width (mm)				2740/2840/2990	2740/2840/2990
Excavator trough width (mm)				700/800/950	700/800/950
Excavator trough depth (mm)				550 (local 450)	550 (local 450)
Axle distance (mm)				1360/1510	1360/1510
